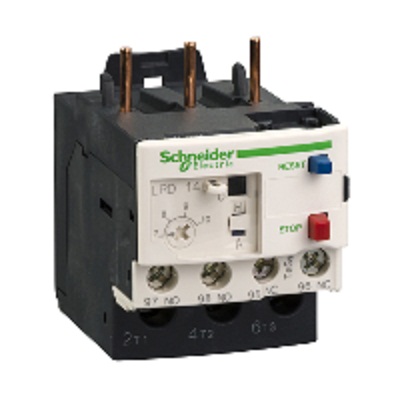

LRD12
TeSys LRD thermal overload relays - 5.5...8 A -
class 10A
Main
Range TeSys
Product name TeSys LRD
Product or component type Differential thermal overload relay
Device short name LRD
Relay application Motor protection
Product compatibility LC1D12
LC1D38
LC1D25
LC1D09
LC1D18
LC1D32
Network type AC
DC
Thermal protection adjustment range 5.5...8 A
[Ui] rated insulation voltage 600 V power circuit conforming to CSA
600 V power circuit conforming to UL
690 V power circuit conforming to IEC 60947-4-1
Complementary
Network frequency 0...400 Hz
Mounting support Plate with specific accessories
Rail with specific accessories
Under contactor
Tripping threshold 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
[Ith] conventional free air thermal
current
5 A for signalling circuit
Permissible current 3 A at 120 V AC-15 for signalling circuit
0.22 A at 125 V DC-13 for signalling circuit
[Ue] rated operational voltage 690 V AC 0...400 Hz
[Uimp] rated impulse withstand voltage 6 kV
